Code: LB-1
Signage WOW, stockists of Bergmen LB1

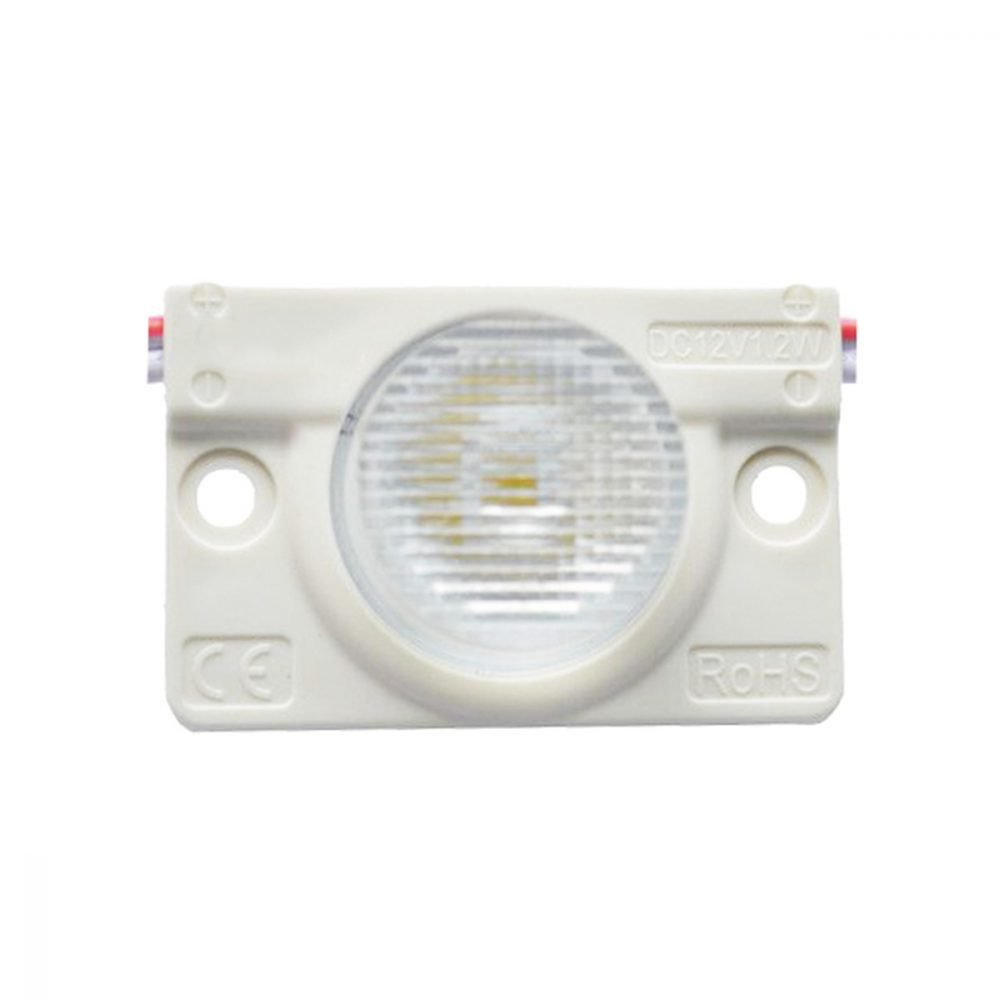

LED Module Dedicated to Slim Edge Lightboxes
The LB-1 features asymmetric lenses which disperse light in two directions and has the ability to be installed on thermally non-conductive surfaces. Two power options (1.2w and 2.8w), with a radiator on the 2.8w high power option. A durable housing unit protects the module against damage and can be easily installed with double sided tape and screwing points.
Applications
- Module dedicated to slim edge light boxes
- Recommended profile sizes 60 - 200mm
- Must be installed in multiples of 3.
Voltage: 12V
Warranty: 2 years
| Model | Pcs per Mtr | Lumins per Module | Watts per Module | Max Pcs per Chain |
|---|---|---|---|---|
| LB-1 Slim | 8 | 120 | 1.2 | 20 |
| LB-1 High Power | 7 | 185 | 2.8 | 18 |
| Model | Kelvin | Beam Angle | Pack |
|---|---|---|---|
| LB-1 Slim | 6500K | 15 45 |
Pack of 20 |
| LB-1 High Power | 6500K 7000K | 56 12 |
Pack of 18 |
| Power Supply | Max Pieces LB-1-Slim |
Max Pieces LB-1-HP |
|---|---|---|
| 40W | 33 | 14 |
| 60W | 50 | 21 |
| 100W | 83 | 35 |
